Pro-34 Cat. No. 20-135

Pro-34 Cat. No. 20-135; Radio Shack Tandy, (ID = 1815987) Misc Pro-34 Cat. No. 20-135; Radio Shack Tandy, (ID = 1815988) Misc
Use red slider bar for more.
Pro-34 Cat. No. 20-135; Radio Shack Tandy, (ID = 1815987) Misc
Radio Shack Tandy,: Pro-34 Cat. No. 20-135 [Misc] ID = 1815987 1052x2100

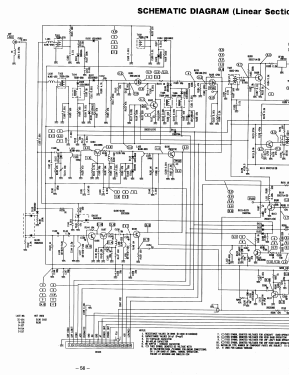

Select picture or schematic to display from thumbnails on the right and click for download.
For model Pro-34 Cat. No. 20-135, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1989 Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Scanner - multiband or special
Power type and voltage Line / Storage batteries (perhaps also batteries) / Either Batteries: "AA" 6 x 1.5V or DC: 9V or AC: 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.75 inch = 4.4 cm
Power out
from Radiomuseum.org Model: Pro-34 Cat. No. 20-135 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 69 x 165 x 46 mm / 2.7 x 6.5 x 1.8 inch
Notes

Radio Shack Reallistic Pro-34 UHF/VHF Scanner. 200 programmable channels.  AC and DC adapters available. Covers 30-54 MHz, 108-174 MHz, 380-512 MHz, 806-824 MHz, 851-869 MHz, and 896-960 MHz.



Net weight (2.2 lb = 1 kg) 0 lb 14 oz (0.875 lb) / 0.397 kg
Price in first year of sale 329.95 USD
Mentioned in Radio Shack Catalog (1989, No.432, page 74.)

Model page created by Michael Gnaedig-Fischer. See "Data change" for further contributors.
