• Year
  • 1993
  • Category
  • Amateur-Receiver (amateur bands, may include broadcast bands)
  • Radiomuseum.org ID
  • 360055

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 48500/455 kHz
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Scanner - multiband or special
  • Power type and voltage
  • Batteries / addl. power jack / AA: 5 x 1.5 / 7.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.66 inch = 4.2 cm
  • Power out
  • 0.25 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Pro-43 Cat. No. 20-300 - Radio Shack Tandy, Realistic,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 2.75 x 5.75 x 1.625 inch / 70 x 146 x 41 mm
  • Notes
  • Frequency coverage: VHF 30-54 MHz, 118-174MHz, 220-512 MHz

                                       UHF 806-823.9375 MHz

                                               851-868.9375 MHz

                                               896-999.9875 MHz

  • Net weight (2.2 lb = 1 kg)
  • 0 lb 8.8 oz (0.55 lb) / 0.250 kg
  • Price in first year of sale
  • 349.95 USD
  • Mentioned in

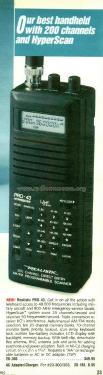

  • - - Manufacturers Literature (Owners Manual)
  • Author
  • Model page created by Ed Riley. See "Data change" for further contributors.
