Pro-89 Cat. No. 20-514
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 2001
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 360181
2001 Radio Shack Catalog Advertisement
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 21400/455 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Scanner - multiband or special
- Power type and voltage
- Batteries / addl. power jack / Batteries / addl. power jack / AA: 4 x 1.5 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.38 inch = 3.5 cm
- Power out
- 0.19 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pro-89 Cat. No. 20-514 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.5 x 5.68 x 1.38 inch / 64 x 144 x 35 mm
- Notes
-
Frequency coverage: VHF: 29 - 54 MHz
108 - 136.9875 MHz
137 MHz - 174 MHz
UHF: 380 - 512 MHz
806-823.9875 MHz
849-868.9875 MHz
894-960 MHz
- Net weight (2.2 lb = 1 kg)
- 0 lb 7.4 oz (0.462 lb) / 0.210 kg
- Price in first year of sale
- 169.99 USD
- Mentioned in

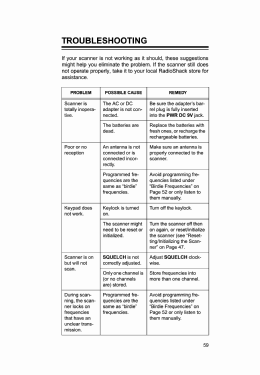

- - - Manufacturers Literature (Owner's Manual Pro-89 200-Channel VHF/Air/UHF 800 MHz Handheld Race Scanner, Cat. No. 20-514, 2001)
- Literature/Schematics (1)
- Radio Shack Catalog (2001, Page 103 ("New...PRO-89"))
- Author
- Model page created by Ed Riley. See "Data change" for further contributors.
