PRO-95 Cat. No. 20-525

Radio Shack (Tandy, Realistic, Micronta); USA

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Radio Shack (Tandy, Realistic, Micronta); USA

Year
2003 ?

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
361624

Schematics

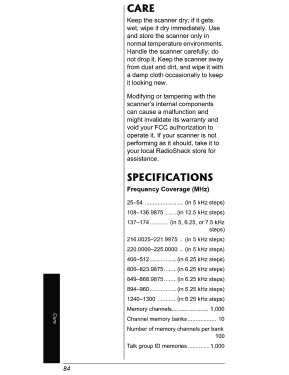

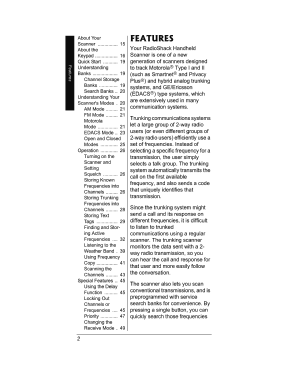

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148988) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148989) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148990) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148991) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148992) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148993) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148994) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148995) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148996) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148997) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148998) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148999) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3149000) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3149001) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (3)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3148987) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (2)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3149227) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (2)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3149228) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (2)

PRO-95 Cat. No. 20-525; Radio Shack Tandy, (ID = 3149229) Amateur-R — Radio Shack Tandy, PRO-95 Cat. No. 20-525 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Superhet, double/triple conversion; ZF/IF 380800/21400/455 kHz

Wave bands
VHF incl. FM and/or UHF (see notes for details)

Details
Scanner - multiband or special

Power type and voltage
Batteries / addl. power jack / AA: 4 x 1.5 / 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 1.38 inch = 3.5 cm

Power out
0.17 W (max.)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: PRO-95 Cat. No. 20-525 - Radio Shack Tandy, Realistic,

Shape
Very small Portable or Pocket-Set (Handheld) < 8 inch.

Dimensions (WHD)
2.43 x 6.18 x 1.75 inch / 62 x 157 x 44 mm

Notes
Frequency coverage: VHF: 25 - 54 MHz

108 - 136.9875 MHz

137 MHz - 174 MHz

216.0025 - 221.9975 MHz

220 - 225 MHz

UHF: 406-512 MHz

806 - 823.9875 MHz

849 - 868.9875 MHz

894 - 960 MHz

1240 - 1300 MHz

Made in China

Net weight (2.2 lb = 1 kg)
0 lb 8.5 oz (0.531 lb) / 0.241 kg

Mentioned in
- - Manufacturers Literature (Owner's Manual PRO-95 Dual-Trunk Tracking Handheld Scanner Cat. No. 20-525)

Author
Model page created by Ed Riley. See "Data change" for further contributors.
