Realistic 12-714A

Realistic 12-714A; Radio Shack Tandy, (ID = 1467666) Radio Realistic 12-714A; Radio Shack Tandy, (ID = 1467667) Radio
Realistic 12-714A; Radio Shack Tandy, (ID = 1467668) Radio Realistic 12-714A; Radio Shack Tandy, (ID = 1467669) Radio
Realistic 12-714A; Radio Shack Tandy, (ID = 1467670) Radio Realistic 12-714A; Radio Shack Tandy, (ID = 1467671) Radio
Realistic 12-714A; Radio Shack Tandy, (ID = 1467672) Radio Realistic 12-714A; Radio Shack Tandy, (ID = 1467673) Radio
Realistic 12-714A; Radio Shack Tandy, (ID = 1467674) Radio
Use red slider bar for more.
Realistic 12-714A; Radio Shack Tandy, (ID = 1467666) Radio
Radio Shack Tandy,: Realistic 12-714A [Radio] ID = 1467666 933x1327
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic 12-714A, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2: 2SC1923 2SC1923 LM1868
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.25 W (max.)
from Radiomuseum.org Model: Realistic 12-714A - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 86 x 135 x 36 mm / 3.4 x 5.3 x 1.4 inch
Notes

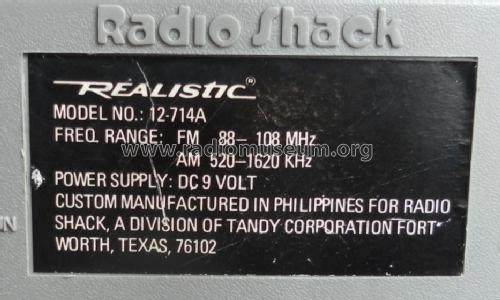

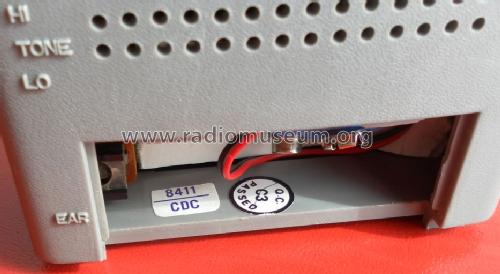

This Realistic 12-714A was custom made in Philippines for Radio Shack.

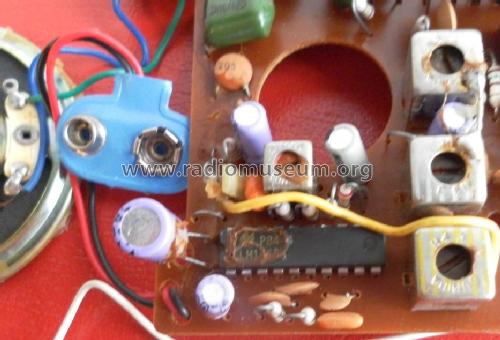

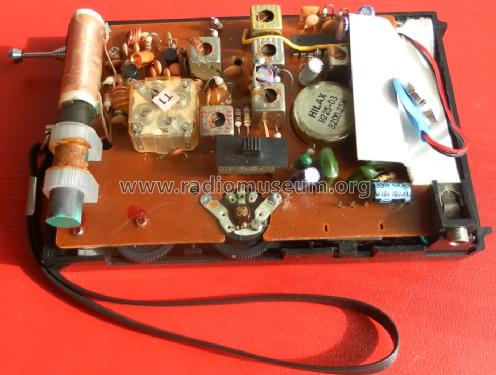

The PCB is equipped with two silicon NPN RF transistors 2SC1923 (FM front-end section) and one IC LM1868 (dated 1984, used as full AM/FM radio).

See also Radio Shack model Realistic 12-714 (made in Hong Kong).



Net weight (2.2 lb = 1 kg) 0.280 kg / 0 lb 9.9 oz (0.617 lb)

Model page created by Jose Mesquita. See "Data change" for further contributors.
