Realistic 12-724
Use red slider bar for more.

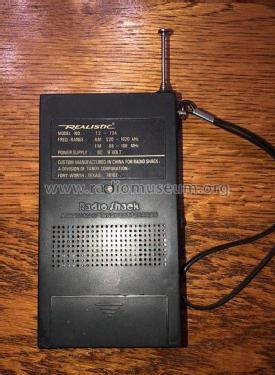

Radio Shack Tandy,: Realistic 12-724 [Radio] ID = 2623973 800x782
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1991/1992 | Category: Broadcast Receiver - or past WW2 Tuner |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | |
| Power type and voltage | Dry Batteries / 1 x 9 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Realistic 12-724 - Radio Shack Tandy, Realistic, |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 2.9375 x 5.3125 x 1.25 inch / 75 x 135 x 32 mm |
| Notes | Made in China |
| Price in first year of sale | 15.95 $ |
| Literature/Schematics (2) | Radio Shack Catalog (1991, No. 459, page 31.) |
| Literature/Schematics (3) | Radio Shack Catalog (1992, No. 472, page 42.) |
Model page created by Noemi Erb. See "Data change" for further contributors.
