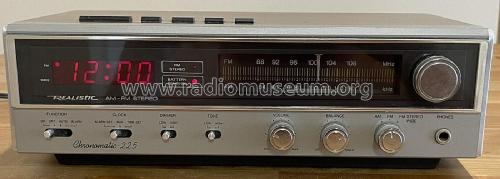

Realistic AM-FM Stereo Chronomatic 225 12-532

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1983 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Realistic AM-FM Stereo Chronomatic 225 12-532 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

Radio Shack Table Top AM-FM Stereo Alarm Clock Radio Realistic Chronomatic 225 Model-No: 12-532.
Tuning Range AM 520 - 1620 kHz, FM 88 - 108 MHz.
Stereo headphone jack.
Power Consumption 10 Watts.
Battery Backup Circuit (1 x 9V).
Simulated walnut grain finish.
Made in Taiwan.

Model page created by Franz Scharner. See "Data change" for further contributors.
