Realistic Chronomatic-259 12-1566
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1987–1990
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227965
By Courtesy Of EBAY User: technogadget
By Courtesy Of EBAY User: technogadget
By Courtesy Of EBAY User: technogadget
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic Chronomatic-259 12-1566 - Radio Shack Tandy, Realistic,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10.625 x 3.375 x 6.6875 inch / 270 x 86 x 170 mm
- Notes
-

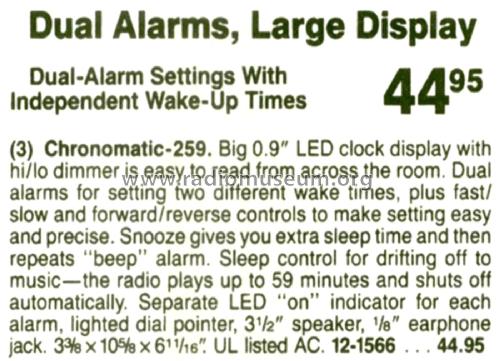

Radio Shack Digital AM-FM Alarm Clock Radio Realistic Chronomatic-259 Model No.: 12-1566.
Tuning Range: FM 88 -108 MHz, AM 520 - 1620 kHz.
Power Consumption 4 Watts.
Power Back-Up for Clock DC 9V.
Made in Malaysia.
- Price in first year of sale
- 44.95 $
- Source of data
- Radio Shack Catalog
- Mentioned in

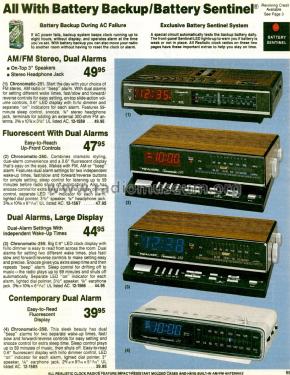

- Radio Shack Catalog (1988, No. 419, page 73.)
- Literature/Schematics (1)
- Radio Shack Catalog (1989, No. 432, page 95, 1990, No. 446, page 99.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
