Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008

Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211057) Ampl/Mixer Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211058) Ampl/Mixer
Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211059) Ampl/Mixer Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211060) Ampl/Mixer
Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211061) Ampl/Mixer Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211062) Ampl/Mixer
Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211063) Ampl/Mixer
Use red slider bar for more.
Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008; Radio Shack Tandy, (ID = 2211057) Ampl/Mixer
Radio Shack Tandy,: Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008 [Ampl/Mixer] ID = 2211057 1200x1600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1967 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 4: 2SB75 2SB75 2SB77 2SB77
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2 inch = 5.1 cm
Power out 0.2 W (max.)
from Radiomuseum.org Model: Realistic MicroSonic Speaker-Amplifier Cat No. 277-1008 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 56 x 89 x 35 mm / 2.2 x 3.5 x 1.4 inch
Notes

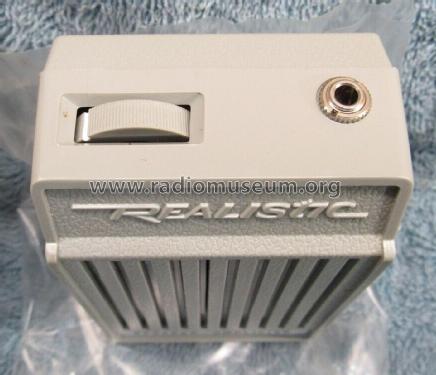

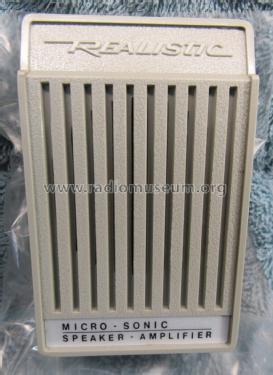

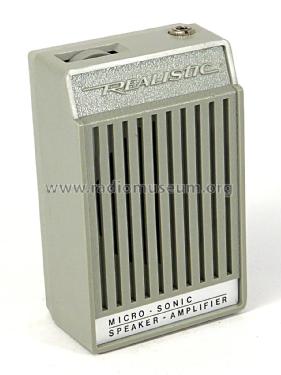

Radio Shack Realistic MicroSonic Cat No. 277-1008.  Made in Japan. 200 MW solid state speaker-amplifier.  For use with electronic projects, kits and telephones.  Has volume control / On-Off knob, input jack.  Powered by 9v battery.  4 transistors: two drivers and two output.

Price in first year of sale 6.95 US$
Mentioned in Radio Shack Catalog (1968 Annual Catalog - Page 80)

Model page created by Ray Albright. See "Data change" for further contributors.
