Realistic Minisette 14-9102

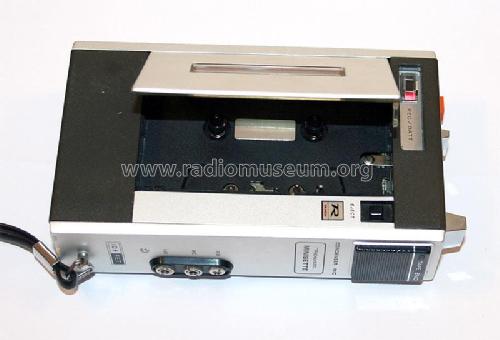

Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915209) R-Player Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915210) R-Player
Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915211) R-Player Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915212) R-Player
Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915213) R-Player Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915214) R-Player
Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915215) R-Player
Use red slider bar for more.
Realistic Minisette 14-9102; Radio Shack Tandy, (ID = 1915209) R-Player
Radio Shack Tandy,: Realistic Minisette 14-9102 [R-Player] ID = 1915209 800x516
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic Minisette 14-9102, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1982 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Batteries / addl. power jack / 4 x 1.5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out
from Radiomuseum.org Model: Realistic Minisette 14-9102 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 170 x 50 mm / 3.9 x 6.7 x 2 inch
Notes

One-touch recording, built-in electret microphone, auto-level and auto-stop. Audible cue/review to locate passages easily, 1 IC + fet.

Made in Japan.

Net weight (2.2 lb = 1 kg) 0.720 kg / 1 lb 9.4 oz (1.586 lb)

Model page created by Danko Tkalec. See "Data change" for further contributors.
