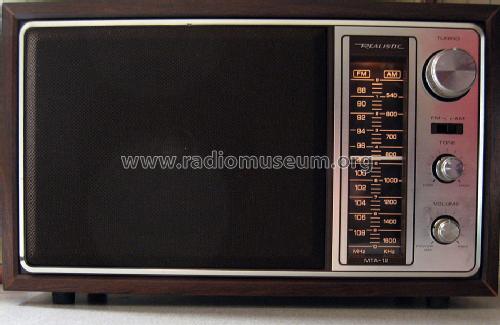

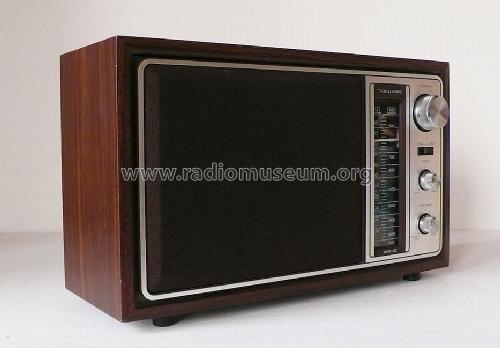

Realistic MTA-12 12-693

Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 2124205) Radio Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 2124206) Radio
Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 2124207) Radio Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1804409) Radio
Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1338847) Radio Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1392233) Radio
Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1392234) Radio Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1392235) Radio
Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1392236) Radio Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 1396932) Radio
Use red slider bar for more.
Realistic MTA-12 12-693; Radio Shack Tandy, (ID = 2124205) Radio
Radio Shack Tandy,: Realistic MTA-12 12-693 [Radio] ID = 2124205 1400x935
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic MTA-12 12-693, Radio Shack (Tandy, Realistic, Micronta); USA

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1986–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. TA7640
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 60 cycles, 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Realistic MTA-12 12-693 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12.25 x 7.0625 x 4.375 inch / 311 x 179 x 111 mm
Notes

Acoustically sealed 5" speaker. Available Oct. 15, 1986

Price in first year of sale 39.95 $
Mentioned in Radio Shack Catalog (1987, no.406, page 84.)
Literature/Schematics (1) Radio Shack Catalog (1989, No. 432, page 97, 1990, No. 446, page 101.)

Model page created by Noemi Erb. See "Data change" for further contributors.
