Realistic MTA-14 12-691

Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1338828) Radio Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1338829) Radio
Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1750504) Radio Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1794991) Radio
Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1794992) Radio
Use red slider bar for more.
Realistic MTA-14 12-691; Radio Shack Tandy, (ID = 1338828) Radio
Radio Shack Tandy,: Realistic MTA-14 12-691 [Radio] ID = 1338828 933x1045
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic MTA-14 12-691, Radio Shack (Tandy, Realistic, Micronta); USA:
By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1987, page 84.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1987–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Realistic MTA-14 12-691 - Radio Shack Tandy, Realistic,
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 6 x 6.25 x 4.75 inch / 152 x 159 x 121 mm
Notes

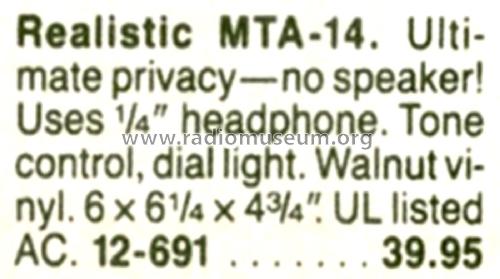

No speaker built-in, uses any 1/4" headphone.
For  personal listening in Hospitals, Nursing Homes, Institutions.
Tone control, dial light, tamperproof enclosure (walnut vinyl)

Price in first year of sale 39.95 $

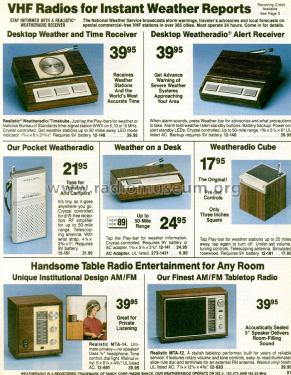

Mentioned in Radio Shack Catalog (1987, no.406, page 84.)
Literature/Schematics (1) Radio Shack Catalog (1989, No. 432, page 97, 1990, No. 446, page 101.)

Model page created by Noemi Erb. See "Data change" for further contributors.
