Realistic PortaVision-50 12-780

Realistic PortaVision-50 12-780; Radio Shack Tandy, (ID = 1331779) Radio Realistic PortaVision-50 12-780; Radio Shack Tandy, (ID = 1331780) Radio
Realistic PortaVision-50 12-780; Radio Shack Tandy, (ID = 1363686) Radio
Use red slider bar for more.
Realistic PortaVision-50 12-780; Radio Shack Tandy, (ID = 1331779) Radio
Radio Shack Tandy,: Realistic PortaVision-50 12-780 [Radio] ID = 1331779 933x941
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic PortaVision-50 12-780, Radio Shack (Tandy, Realistic, Micronta); USA:

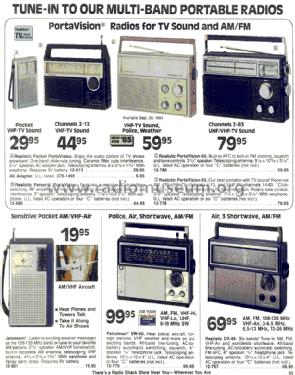

By courtesy of RadioShackCatalogs.com - See all the catalogs from 1939 to (almost) today at www RadioShackCatalogs.com. This picture is from 1987, page 81.

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1984–1988 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 120/ 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out
from Radiomuseum.org Model: Realistic PortaVision-50 12-780 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 10.875 x 9.125 x 3.5 inch / 276 x 232 x 89 mm
Notes

RadioShack Portable Transistor Radio Model Realistic PortaVision 50 Cat-No.: 12-780.
Frequency Range: FM 88 - 108 MHz
AM 520 - 1620 kHz
TV1 CH 2 - 6 TV2 CH 7 - 13
VHF Air-Hi 108 - 174 MHz.
Made in Hong Kong.

Price in first year of sale 59.95 $
Mentioned in Radio Shack Catalog (1985, No. 380, page 95; 1987, no.406, page 81.)

Model page created by Noemi Erb. See "Data change" for further contributors.



All listed radios etc. from Radio Shack (Tandy, Realistic, Micronta); USA
Here you find 1048 models, 914 with images and 89 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
