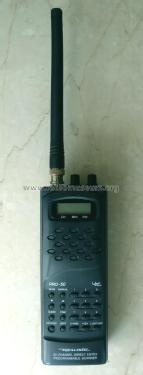

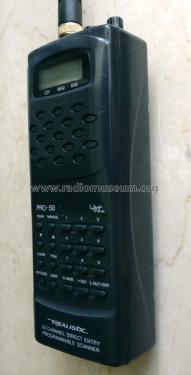

Realistic Scanning Receiver PRO-50 / 20-9307
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1995
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323136

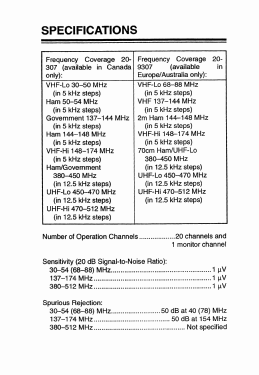

Source: Original manual.
Source: Original manual.
Source: Original manual.
Source: Original manual.
Radio Shack catalog, 1995, page 27
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Batteries / addl. power jack / AA: 6 × 1.5 or 6 × 1.2 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.6 cm = 1.4 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic Scanning Receiver PRO-50 / 20-9307 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 160 x 60 x 44 mm / 6.3 x 2.4 x 1.7 inch
- Notes
-
- Frequenzbereiche
- 68-88 MHz
- 137-174 MHz
- 380-512 MHz
- Modulation
- FM
- 20 programmierbare Speicherkanäle, Direkteingabe der Frequenz
- Stromversorgung
- 6x1,5V AA (Batteriehalter) oder
- externes Netzgerät
ACHTUNG: Vor Betätigen der RESET-Taste ist das Gerät unbedingt von der Stromversorgung (sowohl Batterie, als auch Netzgerät) zu trennen, da dies sonst zur Zerstörung von Bauteilen in der Spannungsregelung des Gerätes führen kann (dies ist leider nicht in der Bedienungsanleitung dokumentiert)!
- Frequency Range
- 68-88 MHz
- 137-174 MHz
- 380-512 MHz
- Modulation: FM
- 20 Channel Direct Entry Programmable Scanner
- Power: 6 x 1.5AA or external adapter
IMPORTANT: Before pressing the reset button, the power supply (either battery or power adapter) must be removed to prevent damage to the receiver circuits. This is not documented in the manual!
- Abgesehen vom Gehäuse baugleich / Except for the case similar to:
- Albrecht - AE50H
- Commtel - COM103
Made in China
- Frequenzbereiche
- Net weight (2.2 lb = 1 kg)
- 0.260 kg / 0 lb 9.2 oz (0.573 lb)
- Price in first year of sale
- 139.99 USD
- Mentioned in
- Radio Shack Catalog (1995, page 27)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
