• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324980

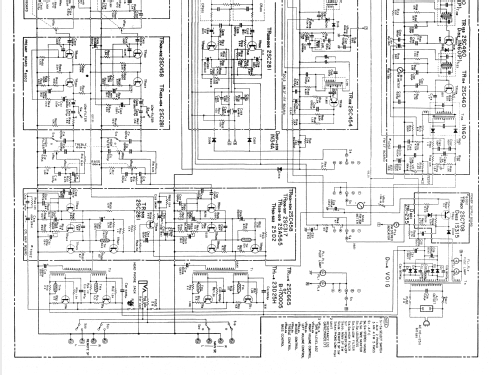

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 42

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 110 to 125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: STA-120 Cat. No.= 31-2018 - Radio Shack Tandy, Realistic,

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 19.4 x 5.4 x 15.4 inch / 493 x 137 x 391 mm

• Notes

• Realistic model STA-120 AM/FM stereo receiver. Rotary controls for bass, mid and treble. Slide controls for left and right volume.

  Made in Japan by Hitachi

• Price in first year of sale
• 259.95 USD

• Mentioned in
• Radio Shack Catalog (1969, page 14)

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1973 Component Stereo #12)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
