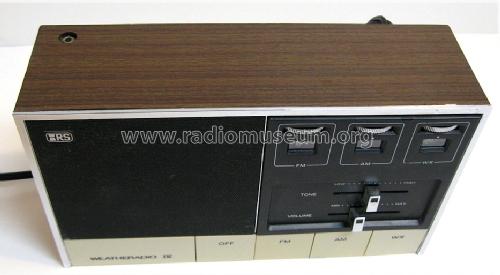

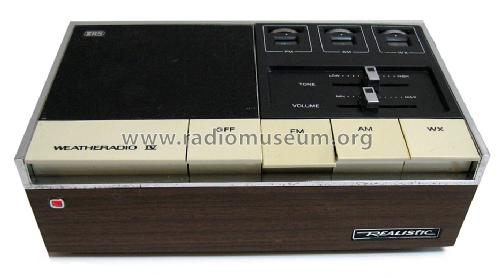

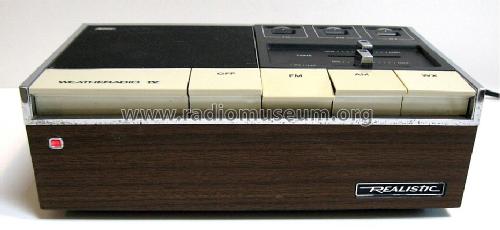

Realistic® Weatheradio IV 12-688

Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475254) Radio Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475255) Radio
Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475256) Radio Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475257) Radio
Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475258) Radio Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475262) Radio
Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475263) Radio Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475264) Radio
Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475267) Radio
Use red slider bar for more.
Realistic® Weatheradio IV 12-688; Radio Shack Tandy, (ID = 1475254) Radio
Radio Shack Tandy,: Realistic® Weatheradio IV 12-688 [Radio] ID = 1475254 933x709
Select picture or schematic to display from thumbnails on the right and click for download.
For model Realistic® Weatheradio IV 12-688, Radio Shack (Tandy, Realistic, Micronta); USA:
By Courtesy Of EBAY User: levelheaddeals

Country:  United States of America (USA)
Manufacturer / Brand:  Radio Shack (Tandy, Realistic, Micronta); USA
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Realistic® Weatheradio IV 12-688 - Radio Shack Tandy, Realistic,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 9 x 3 x 5.25 inch / 229 x 76 x 133 mm
Notes

Radio Shack 3Band Table Top Receiver Model Realistic® Weatheradio IV Cat-No.: 12-688.
Tuning Range: AM 530 - 1605 kHz, FM 88 - 108 MHz, WX 161,4 - 163,5 MHz.
Power Consumption 4 Watts.
Made in Taiwan.

Model page created by Franz Scharner. See "Data change" for further contributors.
