Realistic Weatheradio/Timekube 12-148
Radio Shack (Tandy, Realistic, Micronta); USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Radio Shack (Tandy, Realistic, Micronta); USA
- Year
- 1987–1992
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225939
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Radio with other functions
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Realistic Weatheradio/Timekube 12-148 - Radio Shack Tandy, Realistic,
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 6 x 3.937 x 1.437 inch / 152 x 100 x 36 mm
- Notes
-
Realistic Weatheradio/Timekube operates on 162.4, 162.475 and 162.55 MHz for the national weather service broadcasts, on short wave 5, 10 or 15 MHz for WWV time signals (National Bureau of Standards time-signal station). No FM or BC reception.
- Price in first year of sale
- 39.95 $
- Mentioned in

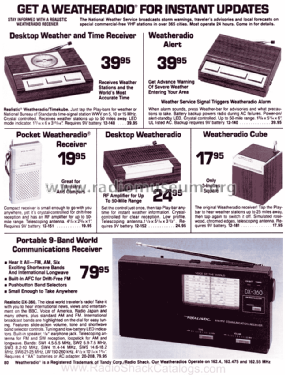

- Radio Shack Catalog (1987, no.406, page 80; 1988, No.419, page 75.)
- Literature/Schematics (1)

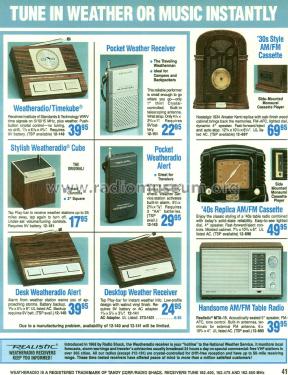

- Radio Shack Catalog (1989, No. 432, page 97, 1990, No. 446, page 101.)
- Literature/Schematics (2)
- Radio Shack Catalog (1991, No. 459, page 30.)
- Literature/Schematics (3)
- Radio Shack Catalog (1992, No. 472, page 41.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
