• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1979 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 353250

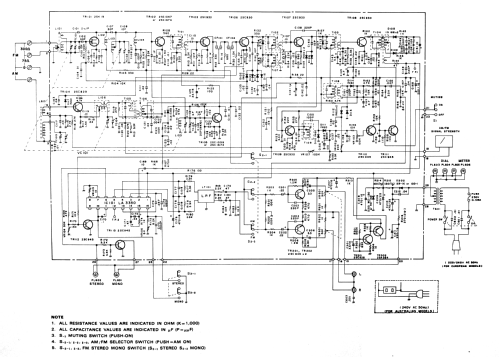

Click on the schematic thumbnail to request the schematic as a free document.

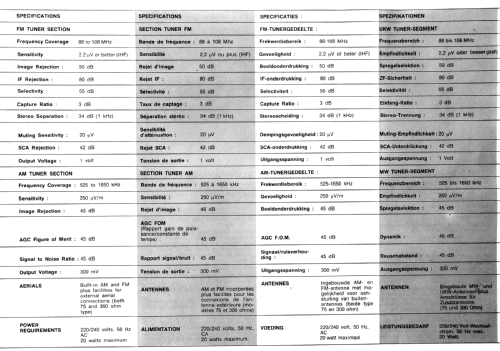

• Number of Tubes
• 0

• Valves / Tubes
• or or

• Number of Transistors
• 17

• Semiconductors
• 2SK19 2SC1047 2SC1674 2SC930 2SC930 2SC930 2SC930 2SC929 2SC1359 2SC1674 2SC930 2SC945 2SC945 2SC945 2SC945 2SC945 2SC945 2SC828 2SA564

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 - 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Solid State AM-FM Stereo Tuner TM-800 - Radio Shack Tandy, Realistic,

• Shape
• Book-shelf unit.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
