• Country
• France

• Manufacturer / Brand
• Radiosolo, Société Lorraine de Radiophonie, Soloradio; Nancy

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302442

• Number of Tubes
• 6

• Valves / Tubes
• 6BE6 6BA6 6AT6 6M6GT 6AF7 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

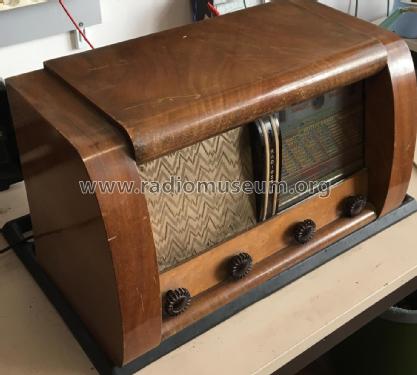

• Model: Inconnu - Unknown 3 - Radiosolo, Société Lorraine de

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 310 x 265 mm / 20.7 x 12.2 x 10.4 inch

• Author
• Model page created by Rolf Beckers. See "Data change" for further contributors.

• Other Models

• Here you find 49 models, 46 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
