• Country
• France

• Manufacturer / Brand
• Radio Source; Paris

• Year
• 1937 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131013

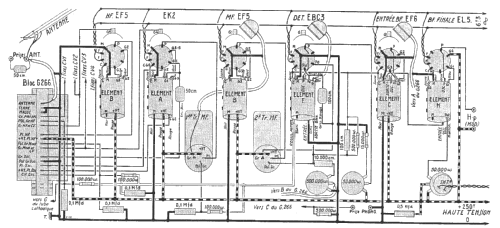

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF5 EK2 EF5 EBC3 EF6 EL5 EZ4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mégasix - Radio Source; Paris

• Notes
• 3 × OC, sélectivité variable, tube cathodique pour réglage visuel.

• Mentioned in
• Radio Plans 1936

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
