Trilampe R.S. 1940
Radio Source; Paris
- Country
- France
- Manufacturer / Brand
- Radio Source; Paris
- Year
- 1940
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 303402

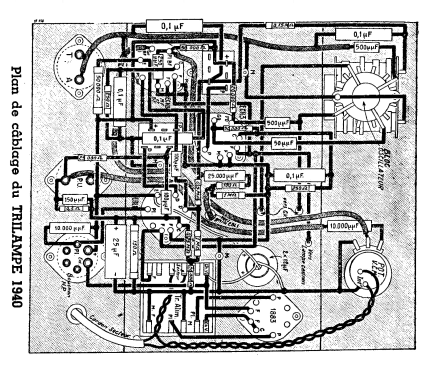

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 4 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Trilampe R.S. 1940 - Radio Source; Paris
- Notes
-
Prix pour le poste complet en ébénisterie.
- Price in first year of sale
- 825.00 FRF
- Mentioned in
- Le Haut-Parleur (No 733, 15.03.1940)
- Author
- Model page created by Jean Marchal. See "Data change" for further contributors.
