Orbita ; Radiotehnika RT - (ID = 135886) Radio

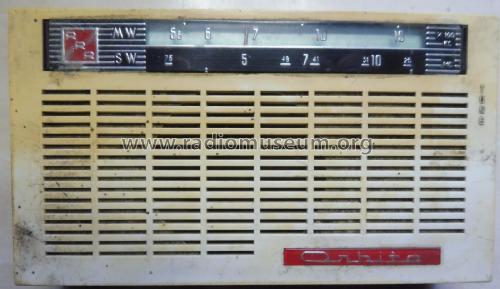

Radiotehnika RT -: Orbita [Radio] ID = 135886 556x333
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orbita, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga:
Serien Nr.106996

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1964–1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: ГТ309 ГТ309 ГТ309 ГТ108 ГТ108 ГТ108 П41 П41 Д9
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 4x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Orbita - Radiotehnika RT - after 1951
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 80 x 35 mm / 5.9 x 3.1 x 1.4 inch
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Schematic

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Radiotehnika RT -: Orbita
Threads: 2 | Posts: 2
Hits: 217     Replies: 0
radiotehni: Geringe NF Leistung-Orbita
Egon Strampe
17.Sep.20
  1


Hits: 1643     Replies: 0
radiotehni: Orbita
Egon Strampe
09.Apr.11
  1

Verzerren starker Sender: C22 (Regelspannung) hatte Kapazitätsverlust.  Hoher Batterieverbrauch, starkes prasseln auf allen Bereichen: Defekt war der C30 - Feinschluß.  (rfe 6/73 S.189)
