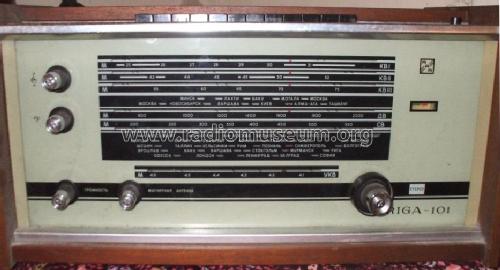

Riga 101

Riga 101; Radiotehnika RT - (ID = 105728) Radio
Riga 101; Radiotehnika RT - (ID = 111027) Radio Riga 101; Radiotehnika RT - (ID = 111028) Radio
Riga 101; Radiotehnika RT - (ID = 111172) Radio Riga 101; Radiotehnika RT - (ID = 1016189) Radio
Riga 101; Radiotehnika RT - (ID = 1016190) Radio Riga 101; Radiotehnika RT - (ID = 1016191) Radio
Riga 101; Radiotehnika RT - (ID = 1016192) Radio Riga 101; Radiotehnika RT - (ID = 1016193) Radio
Riga 101; Radiotehnika RT - (ID = 1191383) Radio Riga 101; Radiotehnika RT - (ID = 1627312) Radio
Use red slider bar for more.
Riga 101; Radiotehnika RT - (ID = 111027) Radio
Radiotehnika RT -: Riga 101 [Radio] ID = 111027 933x568
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riga 101, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1967–1971 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 31: ГТ313 ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 ГТ322 П41 П41 МП25 МП25 МП25 МП41 МП41 МП41 МП41 МП25 МП25 МП37 П213 П213 МП41 МП41 МП41 МП41 МП25 МП25 МП37 П213 П213 П216
Main principle Superheterodyne (common); ZF/IF 465/6800 kHz
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 50 W (undistorted)
from Radiomuseum.org Model: Riga 101 - Radiotehnika RT - after 1951
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 470 x 235 x 270 mm / 18.5 x 9.3 x 10.6 inch
Notes

Two external acoustic systems 470×235×200 mm with 2 loudspeakers each and external record player 390×165×300 mm.

Pout 2x 25 Watt

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Nikolaj Baranov. See "Data change" for further contributors.



All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
