Riga 103; Radiotehnika RT - (ID = 106269) Radio

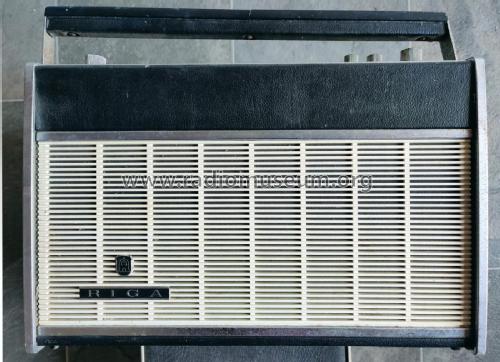

Radiotehnika RT -: Riga 103 [Radio] ID = 106269 625x524
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riga 103 1, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga:
Kaunas, Lithuania

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1967–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 17: ГТ313 ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 ГТ322 МП41 МП41 МП41 МП41 МП41 МП37 МП41 П213 П213 МП41
Main principle Superheterodyne (common); ZF/IF 465/6800 kHz
Tuned circuits 9 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / size D 8x1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Riga 103 [1] - Radiotehnika RT - after 1951
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 380 x 280 x 120 mm / 15 x 11 x 4.7 inch
Notes

Der Riga 103-1 hat LW, MW, 3x KW und FM nach OIRT von 65,8 - 73 MHz. Anschlüsse für TA/ TB, Lautsprecher, Antenne und für ein externes Netzteil sind eingebaut.

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1970-71

Model page created by Nikolaj Baranov. See "Data change" for further contributors.
