• Year
  • 1967–1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 129837
    • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / 12; 8 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Various materials
  • from Radiomuseum.org

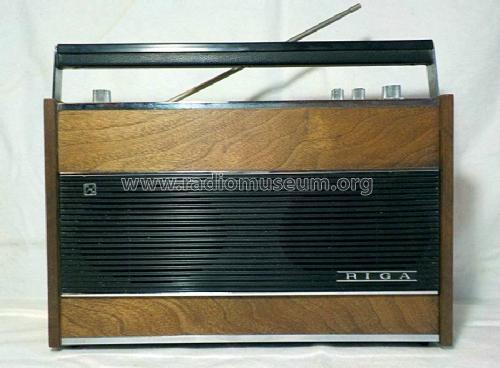

  • Model: Riga 103 [for export] - Radiotehnika RT - after 1951
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 350 x 215 x 115 mm / 13.8 x 8.5 x 4.5 inch
  • Notes
  • RRR Riga 103 "17 Transistors", english labeling in latin letters, coverage: LW: 150...408 kHz, MW: 525...1605 kHz, SW1: 9,4...12,1 MHz, SW2: 5,65...7,4 MHz, SW3: 3.95...5.75 MHz, VHF-FM: 65,8...73,0 MHz; terminals for: antenna, earth, VHF dipole, DIN pickup & tape recorder, earphone, ext. 12 V in, ext. speaker, VHF AFC & local button.
  • Net weight (2.2 lb = 1 kg)
  • 5.8 kg / 12 lb 12.4 oz (12.775 lb)
  • Source of data
  • -- Collector info (Sammler)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Riga is part of the collections of the following members.

 Forum

Forum contributions about this model: Radiotehnika RT -: Riga 103

Threads: 1 | Posts: 1

There are two pictures that do NOT belong to this specific radio model, wich sports the USSR flag.

These two pictures belongs to the "103; 50 Years USSR - 50 ЛЕТ СССР" model, wich was a USSR domestic, not for sale, very special edition model, produced in Riga and based on chassis of the 103-2 model. This special production run was ordered by the USSR MRP to offer these radios to the USSR deputies during the 50th years of USSR commemorations in 1972.

Please remove these two pictures from here as it has nothing to do with this specific model.

We have to be rigorous here, as we are for other radio brands and models here. If we start putting together all the model derivatives only vbecause they share a common chassis topology, we will end up with a few thousands less radiso here in the Museum!!!







Jose Mesquita, 26.Jul.15
