Riga 104

Riga 104; Radiotehnika RT - (ID = 112044) Radio

Riga 104; Radiotehnika RT - (ID = 1449076) Radio

Riga 104; Radiotehnika RT - (ID = 1449077) Radio

Riga 104; Radiotehnika RT - (ID = 1449078) Radio

Riga 104; Radiotehnika RT - (ID = 1449080) Radio

Riga 104; Radiotehnika RT - (ID = 1449081) Radio

Riga 104; Radiotehnika RT - (ID = 1449082) Radio

Riga 104; Radiotehnika RT - (ID = 1449084) Radio
Riga 104; Radiotehnika RT - (ID = 2241196) Radio Riga 104; Radiotehnika RT - (ID = 2241197) Radio

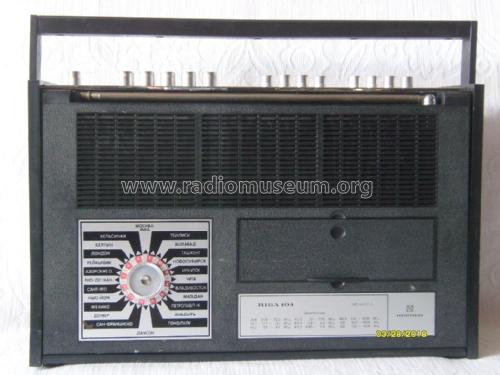

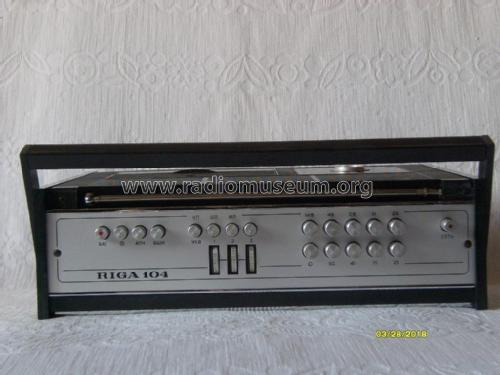

Riga 104; Radiotehnika RT - (ID = 2241199) Radio Riga 104; Radiotehnika RT - (ID = 2241198) Radio
Riga 104; Radiotehnika RT - (ID = 111985) Radio Riga 104; Radiotehnika RT - (ID = 111986) Radio
Riga 104; Radiotehnika RT - (ID = 111989) Radio Riga 104; Radiotehnika RT - (ID = 111990) Radio
Riga 104; Radiotehnika RT - (ID = 214582) Radio Riga 104; Radiotehnika RT - (ID = 834756) Radio
Use red slider bar for more.
Riga 104; Radiotehnika RT - (ID = 2241196) Radio
Radiotehnika RT -: Riga 104 [Radio] ID = 2241196 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riga 104, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 31: ГТ322 ГТ322 ГТ313 ГТ313 ГТ322 ГТ322 ГТ322 ГТ322 ГТ322 КТ315 МП41 КТ315 КТ315 МП41 МП37 КТ315 КТ315 МП40 КТ315 КТ315 МП40 МП37 П213 П213 МП37 П213 КТ315 КТ315 КТ315 КТ315 КТ315
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz
Tuned circuits 8 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 127; 220; 237 / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Riga 104 - Radiotehnika RT - after 1951
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 390 x 242 x 135 mm / 15.4 x 9.5 x 5.3 inch
Notes

Der Reiseempfänger Riga 104 hat LW, MW, 6x KW (75m, 60m, 49m, 41m, 31m und 25m) und FM nach OIRT (65,8 - 73 MHz). Elektronisch abgestimmter FM- Tuner, Anschlüsse für TA/ TB, Antenne, Lautsprecher und Kopfhörer.

Net weight (2.2 lb = 1 kg) 6.3 kg / 13 lb 14 oz (13.877 lb)

Model page created by Nikolaj Baranov. See "Data change" for further contributors.



All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
