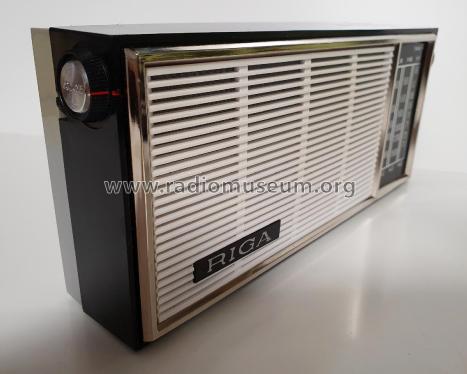

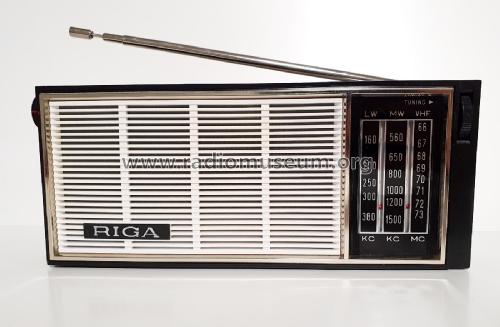

Riga 302

Riga 302; Radiotehnika RT - (ID = 111839) Radio
Riga 302; Radiotehnika RT - (ID = 111864) Radio Riga 302; Radiotehnika RT - (ID = 541371) Radio
Riga 302; Radiotehnika RT - (ID = 271233) Radio Riga 302; Radiotehnika RT - (ID = 541366) Radio
Riga 302; Radiotehnika RT - (ID = 541367) Radio Riga 302; Radiotehnika RT - (ID = 541368) Radio
Riga 302; Radiotehnika RT - (ID = 541372) Radio Riga 302; Radiotehnika RT - (ID = 1044914) Radio
Riga 302; Radiotehnika RT - (ID = 1044916) Radio Riga 302; Radiotehnika RT - (ID = 1044917) Radio
Use red slider bar for more.
Riga 302; Radiotehnika RT - (ID = 111864) Radio
Radiotehnika RT -: Riga 302 [Radio] ID = 111864 492x250
Select picture or schematic to display from thumbnails on the right and click for download.
For model Riga 302, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1969–1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / AA: 6 x 1,5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Riga 302 - Radiotehnika RT - after 1951
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 220 x 100 x 48 mm / 8.7 x 3.9 x 1.9 inch

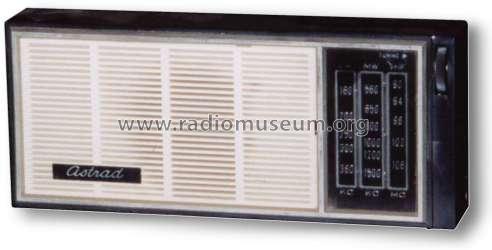

Notes Riga 302 has two export versions: "Astrad 302" and "Vega 302" both equipped with CCIR FM-range, 87,5 .. 100MHz or 87,5 .. 108MHz respectively
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 235.00 DM
Source of data -- Schematic
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Radio es Televizio Vevö keszülekek 1972-75

Model page created by Nikolaj Baranov. See "Data change" for further contributors.



All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
