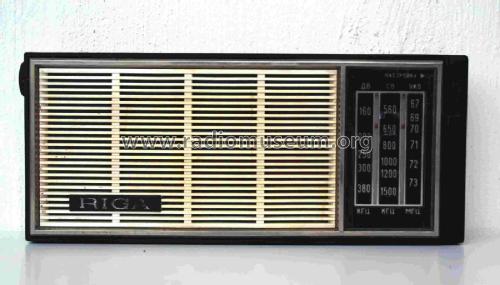

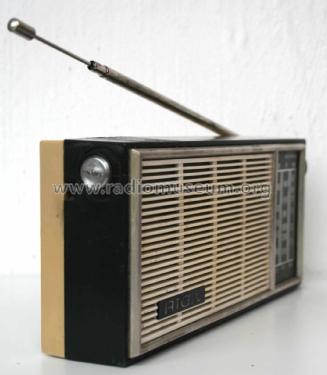

Riga 302A-2

Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Data
Forum
Pictures
Collections

  • Year
  • 1971–1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 264112
    • alternative name: A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 465/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Dry Batteries / 9 / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Riga 302A-2 - Radiotehnika RT - after 1951
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 220 x 100 x 48 mm / 8.7 x 3.9 x 1.9 inch
  • Notes

  •  65,8 - 73 MHz  FM range.  Low-Hight  tone control swich  and  AFC.

    Radios  Riga 302  series  has two export versions: "Astrad 302" and "Vega 302" both equipped with CCIR FM-range, 87,5 .. 100MHz or 87,5 .. 108MHz respectively. (see in RMorg)

  • Net weight (2.2 lb = 1 kg)
  • 0.8 kg / 1 lb 12.2 oz (1.762 lb)
  • Price in first year of sale
  • 59.75 ruble
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.
