Rigonda 102

Rigonda 102; Radiotehnika RT - (ID = 104879) Radio
Rigonda 102; Radiotehnika RT - (ID = 1802920) Radio Rigonda 102; Radiotehnika RT - (ID = 1356216) Radio
Use red slider bar for more.

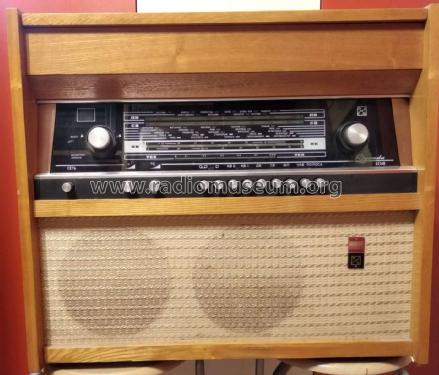

Rigonda 102; Radiotehnika RT - (ID = 1802920) Radio
Radiotehnika RT -: Rigonda 102 [Radio] ID = 1802920 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rigonda 102, Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga

Country:  Latvia (Latvia, Riga)
Manufacturer / Brand:  Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
alternative name

A. Ss. Popow, Riga || Kandava Radio Works || Riga Popov Radiotechnika Works
Year: 1968 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 6Н3П 6И1П 6К4П 6К4П 6Е1П 6Х2П 6Н2П 6П14П 6П14П
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 127 / 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Rigonda 102 - Radiotehnika RT - after 1951
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 640 x 355 x 550 mm / 25.2 x 14 x 21.7 inch
Net weight (2.2 lb = 1 kg) 24 kg / 52 lb 13.8 oz (52.863 lb)
Source of data -- Schematic

Model page created by Nikolaj Baranov. See "Data change" for further contributors.



All listed radios etc. from Radiotehnika (RT) - after 1951 RRR Rigas Radio Rupnica; Riga
Here you find 98 models, 96 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
