Selena {Селена} B-217 {Б-217}
Minsk Radio Works; Minsk
- Country
- Soviet Union
- Manufacturer / Brand
- Minsk Radio Works; Minsk
- Year
- 1980 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 95089
-
- alternative name: Industrial Union Horizont || Minsk Works "Kalibr"
- Number of Transistors
- 17
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage

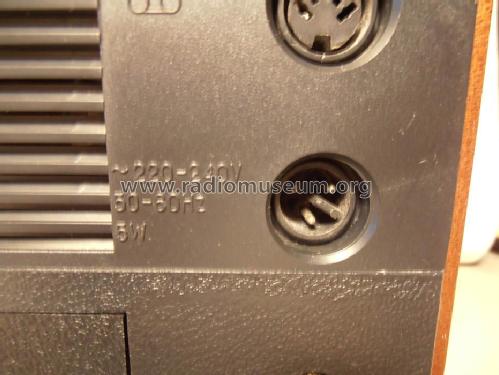

- Line / Batteries (any type) / 110-120; 220-240 AC / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Selena {Селена} B-217 {Б-217} - Minsk Radio Works; Minsk
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 367 x 255 x 119 mm / 14.4 x 10 x 4.7 inch
- Notes
-
LW (148-285 kHz), BC (525-1607 kHz), SW5 (1.6-4.0 MHz), SW4 (5.95-7.30 MHz), SW3 (9.50-9.77 MHz), SW2 (11.7-12.1 MHz) and SW1 (15.10-15.45 MHz) bands. (Numbering follows bandswitch markings). FM (87.5-108.0 MHz) band. Power consumption when operated from AC mains not more than 5 W. Current consumption when operating from batteries for average sound volume 60-70 mA. This Belarus set has been sold widely in Germany around 1990.
Semiconductor types only listed once
- Net weight (2.2 lb = 1 kg)
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Price in first year of sale
- 60.00 DM
- Source of data
- -- Collector info (Sammler)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
- Other Models
-
Here you find 93 models, 89 with images and 59 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Minsk Radio Works; Minsk
Collections
The model Selena {Селена} is part of the collections of the following members.
Forum contributions about this model: Minsk Radio Works;: Selena {Селена} B-217 {Б-217}
Threads: 2 | Posts: 2
Das Selena B-217 scheint es in 2 Varianten zu geben.
1: FM-Bereich bis 104 MHz (siehe erstes Bild ID = 2339645)
2: FM-Bereich bis 108 MHz (siehe 26. Bild ID = 2065174)
Mein Gerät geht bis 104 MHz und empfängt recht gut als letzen Sender NDR-Kultur auf 104,4 MHz (Stadthagen/Bückeberg).
Jörg Holtzapfel, 30.Sep.20
Bonjour :)
Il apparait qu'il y a une recherche de schéma pour le récepteur.
Or cet appareil est strictement identique aux modèles B-215 et B-216, à l'exception des bandes de fréquences couvertes.
Ci-dessous un tableau récapitulatif de ces bandes :
Gamme | B-215 | B-216 | B-217 |
GO | 148 ~ 285 KHz | 148 ~ 285 KHz | 148 ~ 285 KHz |
PO | 525 ~ 1607 KHz | 525 ~ 1607 KHz | 525 ~ 1607 KHz |
OC1 | - | - | 1.60 ~ 4.0 M Hz |
OC2 | 5.95 ~ 7.30 MHz | 5.95 ~ 7.30 MHz | 5.95 ~ 7.30 MHz |
OC3 | 9.50 ~ 9.77 MHz | 9.50 ~ 9.77 MHz | 9.50 ~ 9.77 MHz |
OC4 | 11.70 ~ 12.10 MHz | 11.70 ~ 12.10 MHz | 11.70 ~ 12.10 MHz |
OC5 | 15.10 ~ 15.45 MHz | 15.10 ~ 15.45 MHz | 15.10 ~ 15.45 MHz |
OC6 | 17.70 ~ 17.90 MHz | 17.70 ~ 17.90 MHz | - |
FM1 | - | 65.80 ~ 74 MHz | - |
FM2 | 87.50 ~ 108 MHz | 87.50 ~ 108 MHz | 87.50 ~ 108 MHz |
Pour le dépannage du B-217, se reporter au schéma du B-215 ou du B-216 si la panne ne se trouve pas dans la sction FM.
J Francois BERTRAND, 17.Aug.14
