Airby 400

Radio Test; Paris

Data

Forum

Pictures

Collections

Country
France

Manufacturer / Brand
Radio Test; Paris

Year
1951

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
68651

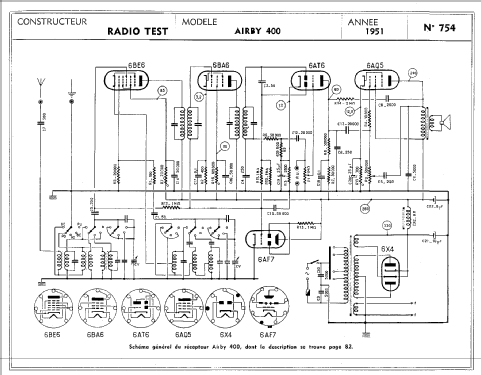

Schematics

Airby 400; Radio Test; Paris (ID = 307794) Radio — Radio Test; Paris Airby 400 (3)

Airby 400; Radio Test; Paris (ID = 592190) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 592192) Radio — Radio Test; Paris Airby 400 (1)

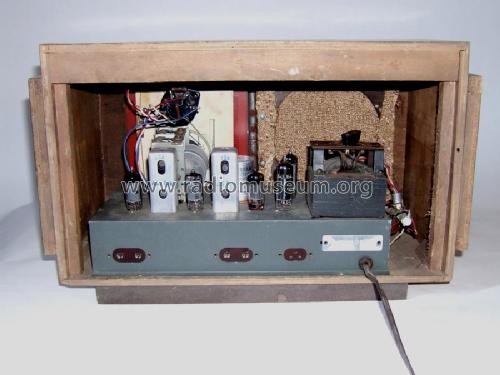

En cours de restauration, HP démonté

Airby 400; Radio Test; Paris (ID = 592191) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 312631) Radio — Radio Test; Paris Airby 400 (2)
Ebay #220079806135

Airby 400; Radio Test; Paris (ID = 1104218) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1104219) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1104220) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1104221) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1104222) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1185726) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1635218) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1635227) Radio — Radio Test; Paris Airby 400 (1)

Airby 400; Radio Test; Paris (ID = 1635244) Radio — Radio Test; Paris Airby 400 (1)
Chassis No 31 068

Airby 400; Radio Test; Paris (ID = 1635249) Radio — Radio Test; Paris Airby 400 (1)
Chassis No 31 068

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
6

Valves / Tubes
6BE6 6BA6 6AT6 6AQ5 6AF7 6X4

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Wave bands
Broadcast, Long Wave and 2 x Short Wave.

Power type and voltage
Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch

Material
Wooden case

from Radiomuseum.org
Model: Airby 400 - Radio Test; Paris

Shape
Tablemodel, low profile (big size).

Dimensions (WHD)
470 x 265 x 225 mm / 18.5 x 10.4 x 8.9 inch

Notes
Boite de junction alimentation pour antiparasites/Anschlußbuchse für Versorgung Antennenverstärker : 6,3 V AC et/und + 250V.

Net weight (2.2 lb = 1 kg)
6.5 kg / 14 lb 5.1 oz (14.317 lb)

External source of data
Serge Laffont/Martin Renoth

Other Models
Here you find 42 models, 32 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Radio Test; Paris

Collections | Museums | Literature

Collections

The model Airby is part of the collections of the following members.

Forum

Forum contributions about this model: Radio Test; Paris: Airby 400

Threads: 2 | Posts: 2

Ein Vergleich der angelegten Bilder ergibt, daß es von diesem Gerät mehrere Versionen gibt. Unterschiede bestehen z.B. in den Verzierungen der Fassade (Schallwandbereich) und bei der Rückwand (Aussparungen, Platzierung der Beschriftung). Auf der Rückwand meines Gerätes ist die EM34 - schlecht , aber eindeutig lesbar - eingezeichnet und auch tatsächlich so eingesetzt, im Schaltplan No 754 ist die 6AF7 vorgegeben.

Manfred Rathgeb, 05.Apr.14

Weitere Posts (1) zu diesem Thema.

dimensions (larg x haut x prof) 470 x 220 x 270mm

matière : bois plaqué

forme : modèle dit "à oreilles"

Bruno Varale, 21.Mar.09

Weitere Posts (1) zu diesem Thema.
