• Country
• Spain

• Manufacturer / Brand
• Radio Watt (Valgifson); Barcelona

• Year
• 1955 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273485

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• HCH81 HF93 HBC90 HL94 HY90

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Super 520-Uh Valgifson - Radio Watt Valgifson;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 165 x 110 x 95 mm / 6.5 x 4.3 x 3.7 inch

• Notes

• PVP 1.250 pts + 140,70 I.L. = 1390,70 pts (1 € = 166,86 pts)

• Price in first year of sale
• 1,390.70 ESP

• Literature/Schematics (1)

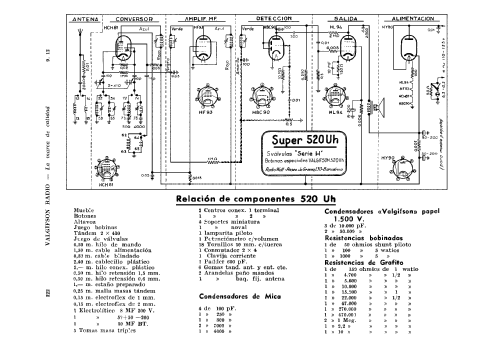

• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
