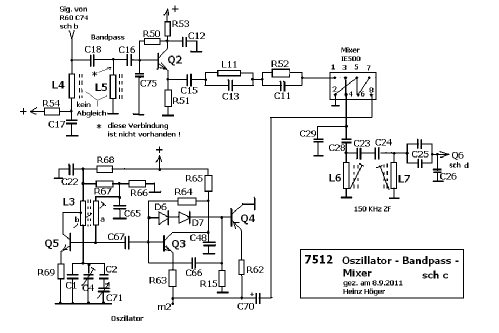

Rakimin 7512; Ramert; Kiel (ID = 1638250) Commercial Re

Rakimin 7512; Ramert; Kiel (ID = 1638251) Commercial Re

Rakimin 7512; Ramert; Kiel (ID = 1638252) Commercial Re

Rakimin 7512; Ramert; Kiel (ID = 1638303) Commercial Re

Rakimin 7512; Ramert; Kiel (ID = 1638305) Commercial Re

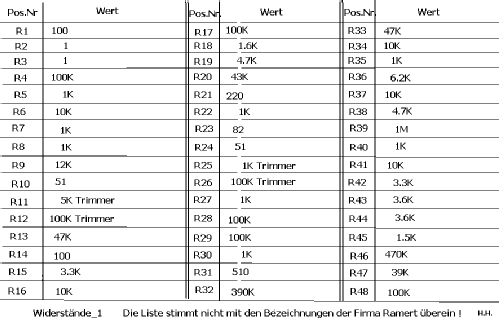

Rakimin 7512; Ramert; Kiel (ID = 1638313) Commercial Re

Rakimin 7512; Ramert; Kiel (ID = 1638314) Commercial Re
Rakimin 7512; Ramert; Kiel (ID = 575741) Commercial Re Rakimin 7512; Ramert; Kiel (ID = 575742) Commercial Re
Rakimin 7512; Ramert; Kiel (ID = 575743) Commercial Re Rakimin 7512; Ramert; Kiel (ID = 1046906) Commercial Re
Rakimin 7512; Ramert; Kiel (ID = 1638324) Commercial Re Rakimin 7512; Ramert; Kiel (ID = 2033601) Commercial Re
Use red slider bar for more.
Rakimin 7512; Ramert; Kiel (ID = 575741) Commercial Re
Ramert; Kiel: Rakimin 7512 [Commercial Re] ID = 575741 675x664
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rakimin 7512, Ramert; Kiel

Country:  Germany
Manufacturer / Brand:  Ramert; Kiel
Year: 1976 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 150 kHz; 1 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12-24 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Rakimin 7512 - Ramert; Kiel
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 170 x 170 x 230 mm / 6.7 x 6.7 x 9.1 inch
Notes

Peilempfänger für Deckenmontage in Holz- oder Kunststoffbooten. Nautische Welle 240 - 420 kHz. 5 ICs.

Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)

Model page created by Heinz Höger. See "Data change" for further contributors.
