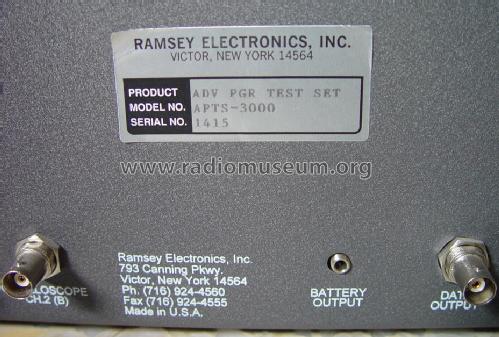

Advanced Pager Test Set APTS-3000 2.6

Ramsey Electronics, Inc.; Victor, NY

Data
Forum
Pictures
Collections

  • Year
  • 2000
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 225820

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • 1 AF stage(s)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 100-230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Power out
  • 0.1 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Advanced Pager Test Set APTS-3000 [2.6] - Ramsey Electronics, Inc.;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 335 x 155 x 360 mm / 13.2 x 6.1 x 14.2 inch
  • Notes

  • Advanced Pager Test. RF generator from 100 KHz to 1000 MHz.

    Can test Flex, Pocsag, Golay, 5/6 tones and 2 tones.



  • Net weight (2.2 lb = 1 kg)
  • 6 kg / 13 lb 3.5 oz (13.216 lb)
  • Source of data
  • -- Original-techn. papers.
