646; RAP Radio Acoustic (ID = 1231540) Radio

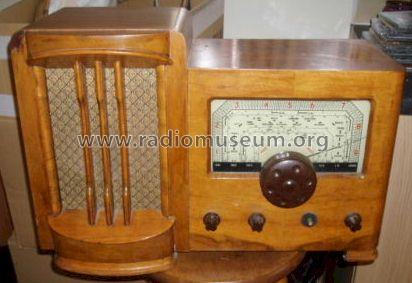

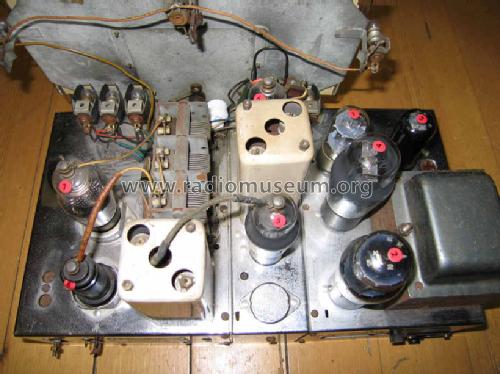

RAP Radio Acoustic: 646 [Radio] ID = 1231540 453x317
Select picture or schematic to display from thumbnails on the right and click for download.
For model 646 All versions, RAP Radio Acoustic Products; Thames Ditton. (Radio Accoustic, Kingst./Th.):
Exactly type number unknown! / Ebay auction by user hevsfings 261006875951

Country:  Great Britain (UK)
Manufacturer / Brand:  RAP Radio Acoustic Products; Thames Ditton. (Radio Accoustic, Kingst./Th.)
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6K7G 6K8G 6K7G 6Q7 6J5G 6V6G 6V6G 5Z4G
Main principle Super-Heterodyne (Super in general); ZF/IF 365 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 646 [All versions] - RAP Radio Acoustic Products;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 390 x 205 x 210 mm / 15.4 x 8.1 x 8.3 inch
Notes

Radio with modular chassis with 3 SW bands.

Chassis Modules

  1. RF1 (6K8G) OR RF2 (6K7G 6K8G)
  2. IF1 (6K7G 6Q7)
  3. Power 1 (6V6G 5Z4G) OR Power 2 (6J5G 6V6G 6V6G 5Z4G)

The Service manual covers all modules.

There is also a console version, model 846, utilizing the same selection of Chassis Modules.

Number of tubes/valves AM tuned stages and AF stages vary according to Modules fitted.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
