• Country
• Germany

• Manufacturer / Brand
• Ratag, Radio-Telephon-AG; Berlin

• Year
• 1925/1926

• Category
• Detector-Radio (Crystal or diode, without tubes/transistors)

• Radiomuseum.org ID
• 16398

• Main principle
• Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

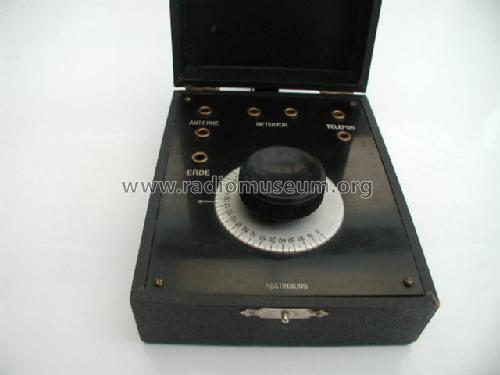

• Model: Detektor-Empfänger [Var. 1] - Ratag, Radio-Telephon-AG;

• Dimensions (WHD)
• 115 x 53 x 145 mm / 4.5 x 2.1 x 5.7 inch

• Notes
• Mit Deckel; Flachspulendoppelvariometer.
  Siehe auch Var. 2 mit Klemmanschlüssen und anderer Beschriftung.

• Price in first year of sale
• 12.00 RM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokat. Reichsthaler ca. 1925 / Radiokatalog Band 2, Ernst Erb
