1820

1820 ; Rauland Corporation; (ID = 425235) Ampl/Mixer
Use red slider bar for more.
1820 ; Rauland Corporation; (ID = 425235) Ampl/Mixer

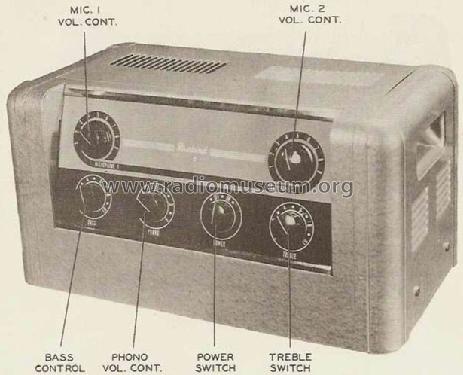

Rauland Corporation;: 1820 [Ampl/Mixer] ID = 425235 615x498
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1820, Rauland Corporation; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  Rauland Corporation; Chicago
Year: 1950 Category: Audio Amplifier or -mixer
Valves / Tubes 8: 6J7 6J7 6SF5 6SC7 6SC7 6L6 6L6 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-130 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 1820 - Rauland Corporation; Chicago
Material Metal case
Shape Tablemodel, with any shape - general.
Notes 4 channel.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 100 Folder 10 7-1950)

Model page created by a member from A. See "Data change" for further contributors.
