546T ; Rauland Corporation; (ID = 376022) Radio

546T ; Rauland Corporation; (ID = 508477) Radio

546T ; Rauland Corporation; (ID = 508478) Radio

546T ; Rauland Corporation; (ID = 508479) Radio

546T ; Rauland Corporation; (ID = 508480) Radio
546T ; Rauland Corporation; (ID = 2113397) Radio 546T ; Rauland Corporation; (ID = 385308) Radio
546T ; Rauland Corporation; (ID = 385311) Radio 546T ; Rauland Corporation; (ID = 385312) Radio
546T ; Rauland Corporation; (ID = 385309) Radio 546T ; Rauland Corporation; (ID = 385310) Radio
546T ; Rauland Corporation; (ID = 1462383) Radio
Use red slider bar for more.
546T ; Rauland Corporation; (ID = 2113397) Radio
Rauland Corporation;: 546T [Radio] ID = 2113397 1400x1160

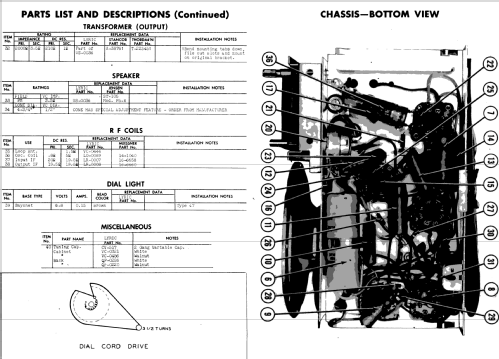

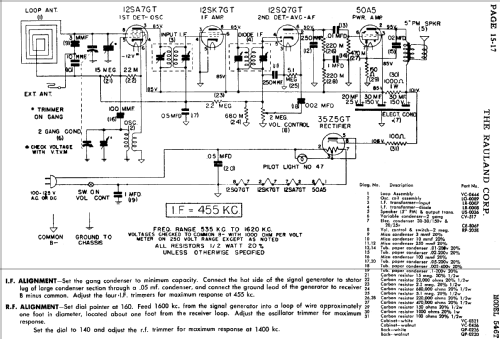

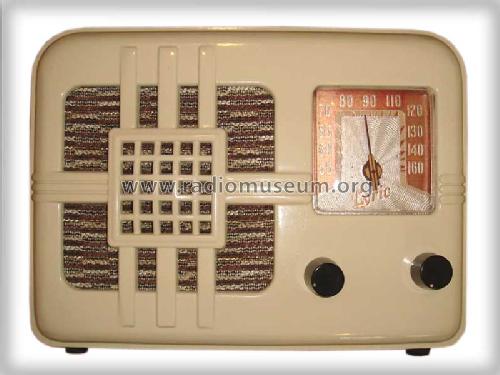

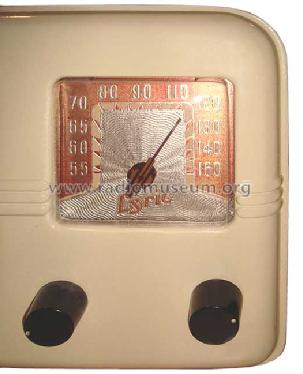

Select picture or schematic to display from thumbnails on the right and click for download.
For model 546T, Rauland Corporation; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  Rauland Corporation; Chicago
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50A5 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 546T - Rauland Corporation; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Notes Trade name = Lyric. Sams photofact, set 7, folder 467-17, date 11-46, features the Rauland Lyric models 546T and 546TY as the same schematic.
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 15 = 1947 and before
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 7 folder 467-17 date 11-46)
Literature/Schematics (2) Table Top Radios Vol. 1 Stein 98 (page 129.)

Model page created by Peter Rutishauser. See "Data change" for further contributors.
