62E

62E; Raycophone Ltd., (ID = 2406794) Radio 62E; Raycophone Ltd., (ID = 1931341) Radio
Use red slider bar for more.

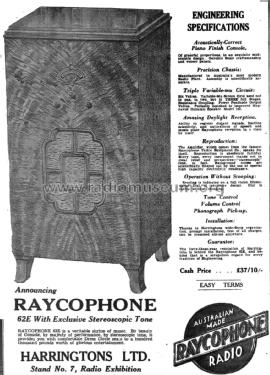

62E; Raycophone Ltd., (ID = 2406794) Radio
Raycophone Ltd.,: 62E [Radio] ID = 2406794 1400x1943
Select picture or schematic to display from thumbnails on the right and click for download.
For model 62E, Raycophone Ltd., Sydney:
Wireless Weekly Mar 4, 1932 Page 57

Country:  Australia
Manufacturer / Brand:  Raycophone Ltd., Sydney
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 58 58 58 57 247 280
Main principle TRF without regeneration; 1 AF stage(s); Anode bend detection
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 62E - Raycophone Ltd., Sydney
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 37.50 Aus£
Mentioned in Wireless Weekly (Australia) (Mar 4, 1932 Page 57)

Model page created by Stuart Irwin. See "Data change" for further contributors.



All listed radios etc. from Raycophone Ltd., Sydney
Here you find 43 models, 22 with images and 10 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
