72-E

72-E; Raycophone Ltd., (ID = 2212319) Radio
Use red slider bar for more.
72-E; Raycophone Ltd., (ID = 2212319) Radio
Raycophone Ltd.,: 72-E [Radio] ID = 2212319 575x948
Select picture or schematic to display from thumbnails on the right and click for download.

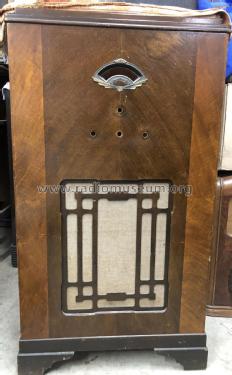

For model 72-E, Raycophone Ltd., Sydney:
Raycophone model 72-E from an advert in the Wireless Weekly "Superheterodyne Book".

Country:  Australia
Manufacturer / Brand:  Raycophone Ltd., Sydney
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner

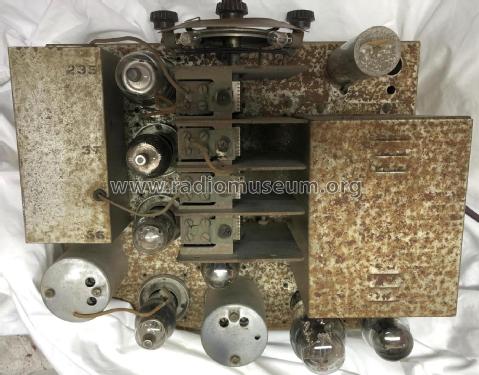

Valves / Tubes 7:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 72-E - Raycophone Ltd., Sydney
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

The valve types are unknown but an advert in the Wireless Weekly "Superheterodyne Book" states that six-prong valves are used.

This model was still on sale in December 1933 by which time the price had been reduced to £32/10/-.



Price in first year of sale 42.50 Aus£
Mentioned in Wireless Weekly Australia (An advert in the "Wireless Weekly" Superheterodyne book.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
