Reflex 5 254PE Ch= 54PE

Raycophone Ltd., Sydney

  • Year
  • 1933/1934
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 166068

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 220 - 260 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Reflex 5 254PE Ch= 54PE - Raycophone Ltd., Sydney
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

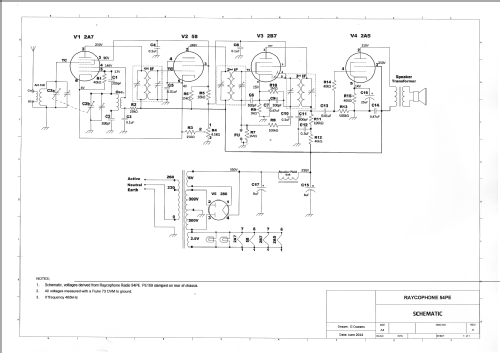

  • According to the “Radio Technician”, July 1939, the 54PE chassis was Australia’s first example of diode-pentode reflexing. The 2B7 functions as a second stage IF amplifier, detector & audio amplifier. The reflexing is achieved by feeding the audio across a load resistor, R7, which is placed in the grid return. In the anode circuit R11 is bypassed by a small capacitor and serves as the audio load.

    This radio has a bookshelf incorporated below the radio section.

  • Price in first year of sale
  • 22.00 Aus£
  • Mentioned in
  • Radio Technician, July 1939.
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
