For model C-212B Ch= 21T42, Raytheon Mfg. Co.; Cambridge, MA:

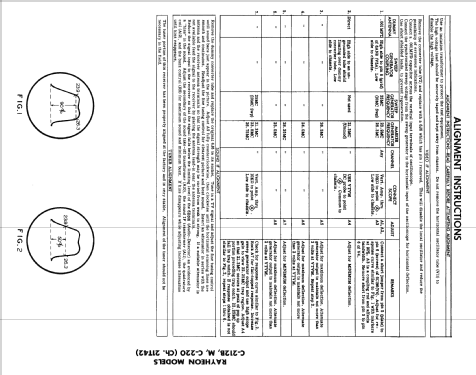

Picture from service manual.

Country:  United States of America (USA)
Manufacturer / Brand:  Raytheon Mfg. Co.; Cambridge, MA
Year: 1956 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6BC5 6J6 6CB6 6CB6 6AN8 6AN8 6AN8 6BN6 6BK5 6C4 6S4 12AU7 6CD6G 6AX4GT 1B3GT 21ALP4A
Main principle Superhet with RF-stage
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: C-212B Ch= 21T42 - Raytheon Mfg. Co.; Cambridge,
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Raytheon model C-212B is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 21T42, VHF tuner D-211-26406 and picture tube 21ALP4A.

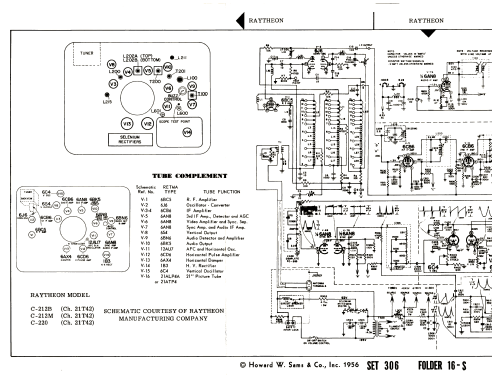

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 324 Folder 12 dated 7-56)

Model page created by Dirk Taekels. See "Data change" for further contributors.
