• Country
• United States of America (USA)

• Manufacturer / Brand
• Raytheon Mfg. Co.; Cambridge, MA

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 265803

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105-120 Volt

• from Radiomuseum.org
• Model: M-210-B Ch= 21T46 - Raytheon Mfg. Co.; Cambridge,

• Mentioned in

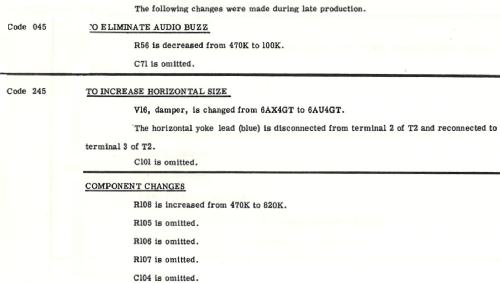

• Photofact Folder, Howard W. SAMS (Set 345 Folder 1 Production Changes Bulletin 178)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 327 Folder 12)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
