UC-2167 Ch= 21T26AGH
Raytheon Mfg. Co.; Cambridge, MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Raytheon Mfg. Co.; Cambridge, MA
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 330983

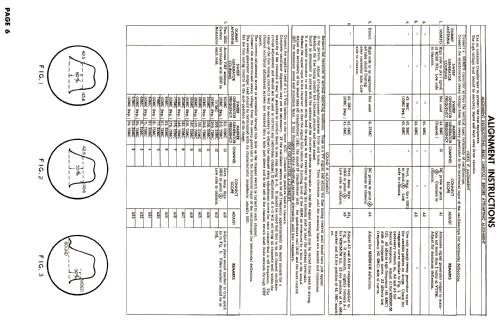

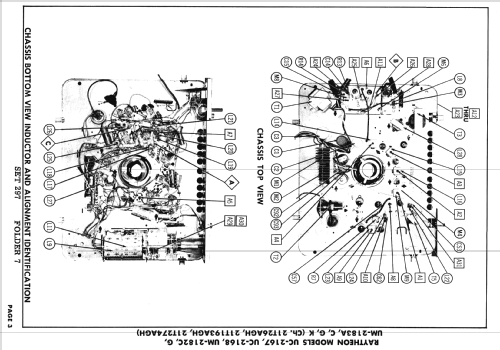

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6T4 6BZ7 6U8 6CB6 6CB6 6CB6 6AN8 6AN8 6BN6 25BK5 12BH7 12AU7 25BQ6GT 25AX4GT 1X2B 21AVP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: UC-2167 Ch= 21T26AGH - Raytheon Mfg. Co.; Cambridge,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Raytheon model UC-2167 is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis 21T26AGH, VHF- UHF tuner D211-24245 and picture tube 21AVP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 297 Folder 7 dated 11-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 331 models, 153 with images and 247 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Raytheon Mfg. Co.; Cambridge, MA
