For model 100B, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1929 Category: Loudspeaker, headphone or earphone
Details
Power type and voltage No Power needed
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: 100B - RCA RCA Victor Co. Inc.; New
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 270 x 135 mm / 11 x 10.6 x 5.3 inch
Notes ...RCA Loudspeaker 100 B - The newest member of the celebrated '100' series, magnetic type. Distinctive modernistic design to match Radiola 33... From: Talking Machine World & Radio-Music Merchant - RMA Trade Show Issue - June 1929.
Net weight (2.2 lb = 1 kg) 3.7 kg / 8 lb 2.4 oz (8.15 lb)
Price in first year of sale 22.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in Radio Manufacturers of the 1920's, Vol. 3

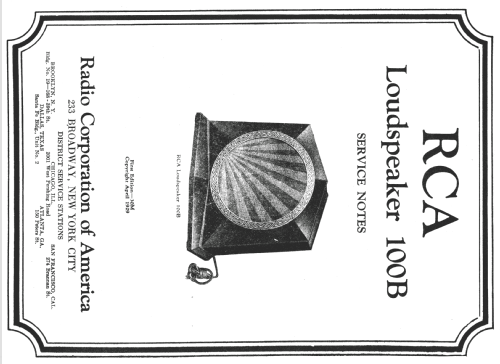

Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series
