- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53091
-
- alternative name: RCA Manufacturing || Victor Talking Machine
Copy gen. von Lynn Toppo Radio Attic
By courtesy of William Kendrick, USA

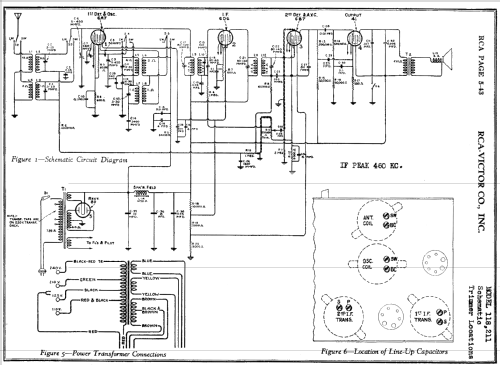

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 100-130;195-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 1.9 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 118 - RCA RCA Victor Co. Inc.; New

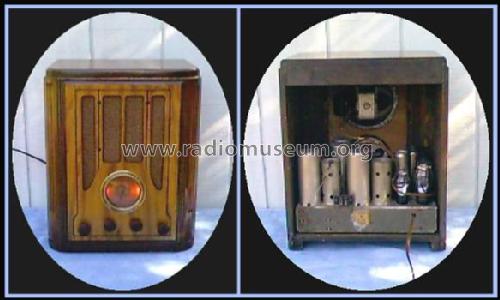

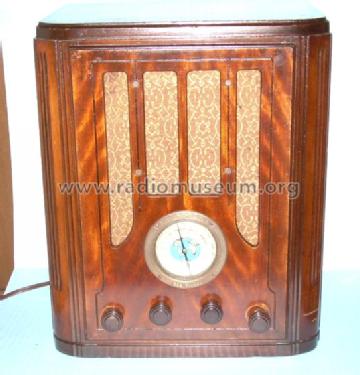

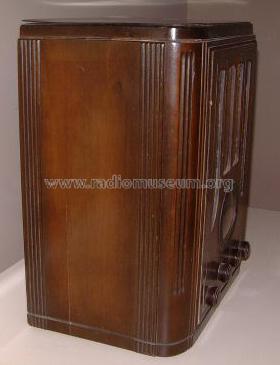

- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 14.675 x 17.675 x 9.75 inch / 373 x 449 x 248 mm
- Notes
- Same chassis in console model 211. The RCA model 118 was also sold in 1935 by "Thearly's Music Co., San Diego, CA.
- Price in first year of sale
- 39.95 USD
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Machine Age to Jet Age III
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
