- Country
- United States of America (USA)
- Manufacturer / Brand
- RCA (RCA Victor Co. Inc.); New York (NY)
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 53092
-
- alternative name: RCA Manufacturing || Victor Talking Machine
By courtesy of William Kendrick, USA

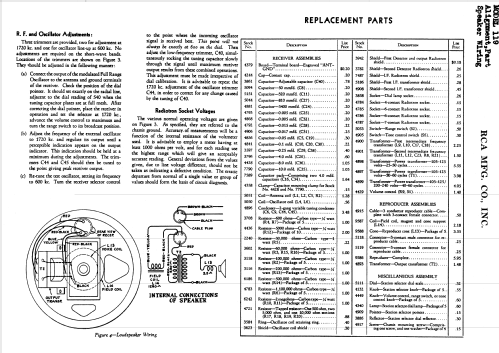

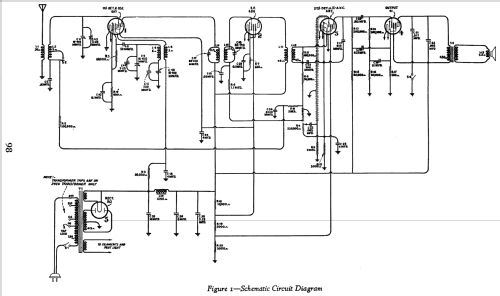

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.
- Power type and voltage
- Alternating Current supply (AC) / 105-125; 195-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.75 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 119 - RCA RCA Victor Co. Inc.; New
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 13.675 x 15 x 8.375 inch / 347 x 381 x 213 mm
- Notes
- The RCA model 119 was sold in 1935 by "Thearly's Music Co., San Diego, CA - but we believe it is a model from season 1934/35.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition
- Literature/Schematics (1)
- Table Top Radios Vol. 1 Stein 98
- Literature/Schematics (2)
- RCA Victor Service Notes "Red Book" Series
- Literature/Schematics (3)
- Cathedral & Tombstone Radios (page 218.)
