For model 122, RCA (RCA Victor Co. Inc.); New York (NY)

Country:  United States of America (USA)
Manufacturer / Brand:  RCA (RCA Victor Co. Inc.); New York (NY)
alternative name

RCA Manufacturing || Victor Talking Machine
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner

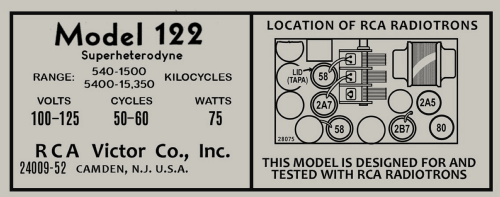

Valves / Tubes 6: 58 2A7 58 2B7 2A5 80
Main principle Superhet with RF-stage; ZF/IF 370 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 100-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 1.75 W (unknown quality)
from Radiomuseum.org Model: 122 - RCA RCA Victor Co. Inc.; New
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

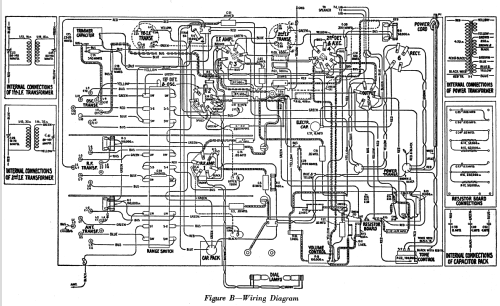

Circuit diagram reference Rider's Perpetual, Volume 4 = ca. 1934 and before

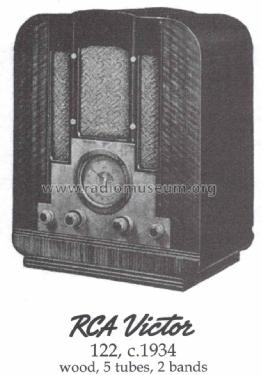

Mentioned in Table Top Radios Vol. 1 Stein 98
Literature/Schematics (1) RCA Victor Service Notes "Red Book" Series


All listed radios etc. from RCA (RCA Victor Co. Inc.); New York (NY)
Here you find 4732 models, 2817 with images and 3823 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
