• Year
  • 1933
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 53124
    • alternative name: RCA Manufacturing || Victor Talking Machine

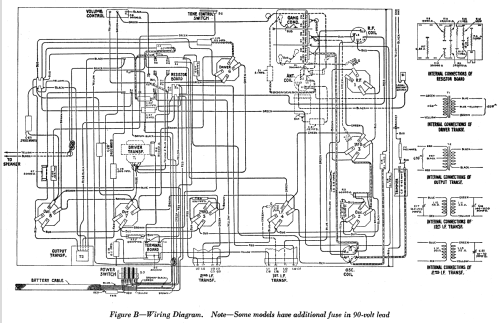

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 2 & 22.5 & 90 & 180 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 142-B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Notes
  • Chassis is the same as the GE B-81.  Uses one-2 volt "A" battery and four-45 volt "B" batteries.

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 4 = ca. 1934 and before
