170P061U, 170P063U, 170P064U Ch= KCS126B

RCA (RCA Victor Co. Inc.); New York (NY)

  • Year
  • 1959
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 155724
    • alternative name: RCA Manufacturing || Victor Talking Machine

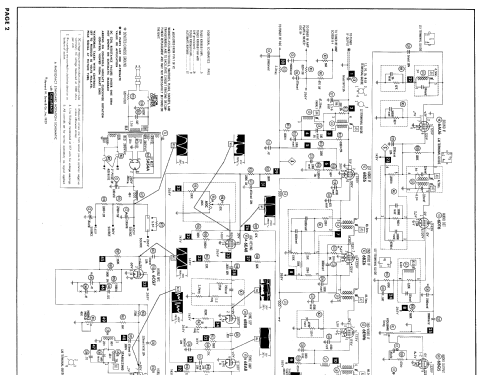

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 17
  • Valves / Tubes
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • from Radiomuseum.org
  • Model: 170P061U, 170P063U, 170P064U Ch= KCS126B - RCA RCA Victor Co. Inc.; New
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • 17" Television Receiver, Picture tube: 17DKP4, some models are equipped with continuous UHF tuner, tube quantity UHF: 18
    Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
  • Author
  • Model page created by Egon Penker. See "Data change" for further contributors.
